| Technical Specifications |
| Top speed (max) |
100 km/h (62 mph) |
120 km/h (75 mph) |
150 km/h (93 mph) |
| Peak torque |
108 Nm |
118 Nm |
148 Nm |
| Max capacity |
3.6 kWh (72V52Ah) |
6.2 kWh (72V86Ah) |
7.2 kWh (72V102Ah) |
| Power pack warranty |
3 years/unlimited kms |
3 years/unlimited kms |
3 years/unlimited kms |

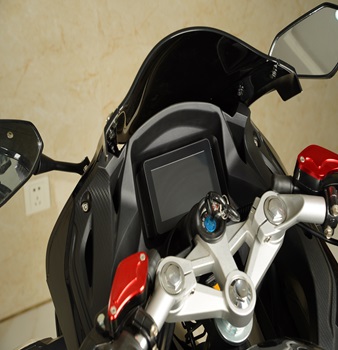

| Display |
TFT |
TFT |
TFT |
| Range |
| City |
120 km (75 miles) |
180 km (112 miles) |
200 km (124 miles) |
| Highway, 80 km/h (50 mph) |
80 km (50 miles) |
120 km (75 miles) |
135 km (84 miles) |
| Highway, 113 km/h (70 mph) |
/ |
90 km |
100 km (62 miles) |
| Highway, 130 km/h (80 mph) |
/ |
/ |
85 km (53 miles) |
| Motor |
| Peak torque |
108 Nm |
118 Nm |
148 Nm |
| Rated power |
3 kW |
5 kW |
8 kW |
| Peak power |
4 kW |
6 kW |
11 kW |
| Top speed (max) |
100 km/h (63 mph) |
120 km/h (75 mph) |
150 km/h (93 mph) |
| Top speed (sustained) |
80 km/h (50 mph) |
100 km/h (62 mph) |
130 km/h (81 mph) |
| Type |
Brushless DC hub |
Brushless DC hub |
Brushless DC hub |
| Controller |
Sine wave |
Sine wave |
Sine wave |
| Power system |
| Max capacity |
3.6 kWh (72V52Ah) |
6.2 kWh (72V86Ah) |
7.2 kWh (72V102Ah) |
| Charger type |
10A charger |
10A charger |
18A car quick charger |
| Charge time (10A charger) |
5.5 hours |
9 hours |
/ |
| Charge time (18A car quick charger) |
3 hours |
5 hours |
6 hours |
| Input |
Standard 110 V or 220 V |
Standard 110 V or 220 V |
Standard 110 V or 220 V |
| Battery cycles |
2000 |
2000 |
2000 |
| Battery cell |
Svolt, A grade |
Svolt, A grade |
Svolt, A grade |
| Chassis / Suspension / Brakes |
| Front suspension |
hydraulic |
inverted adjustable hydraulic |
inverted adjustable hydraulic |
| Rear suspension |
adjustable hydraulic |
adjustable nitrogen |
adjustable nitrogen |
| Front suspension travel |
120 mm |
120 mm |
120 mm |
| Rear suspension travel |
45 mm |
45 mm |
45 mm |

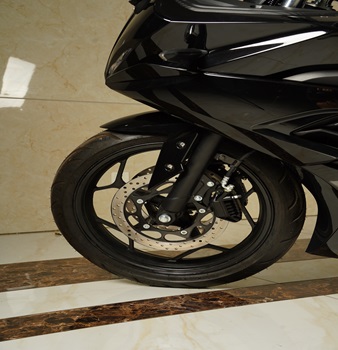

| Front brakes |
3 piston caliper,
300 x 4 mm disc |
4 piston caliper,
300 x 4 mm disc |
4 piston caliper,
300 x 4 mm disc |

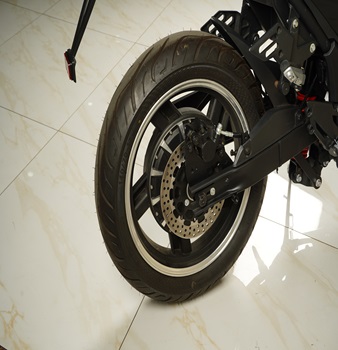

| Rear brakes |
2 piston caliper,
240 x 4 mm disc |
single piston caliper, 240 x 4 mm disc |
single piston caliper, 240 x 4 mm disc |
| Front tire |
Kenda 110/70-17,SHMT |
Kenda 110/70-17,SHMT |
Kenda 110/70-17,SHMT |

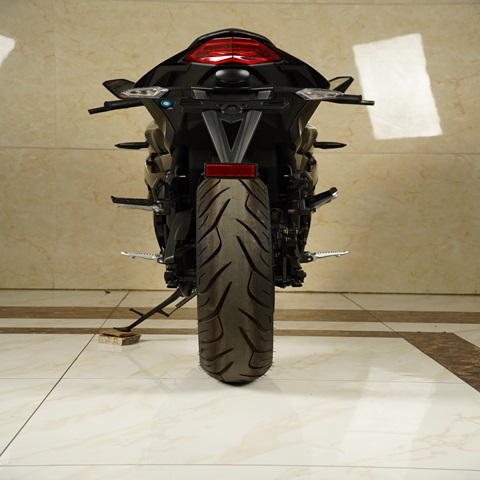

| Rear tire |
Kenda 150/70-17,SHMT |
Kenda 150/70-17,SHMT |
Kenda 150/70-17,SHMT |
| Front wheel |
3.00 x 17 |
3.00 x 17 |
3.00 x 17 |
| Rear wheel |
3.50 x 17 |
3.50 x 17 |
3.50 x 17 |
| ABS |
Optional |
Optional |
Standard configuration |
| Dimensions / Weight/Package/Loading |
| Wheelbase |
1450 mm |
1450 mm |
1450 mm |
| Ground clearance |
150mm |
150mm |
150mm |
| Seat height |
820 mm |
820 mm |
820 mm |
| Pillion height |
1000 mm |
1000 mm |
1000 mm |
| Vehicle Size (L x W x H) |
2080 x 750 x 1160 mm |
2080 x 750 x 1160 mm |
2080 x 750 x 1160 mm |
| Rake |
26.2° |
26.2° |
26.2° |
| Curb weight |
150kg |
170kg |
175kg |
| Carrying capacity |
150kg |
150kg |
150kg |
| Package size SKD (L x W x H) |
2180 x 580 x 1100 mm |
2180 x 580 x 1100 mm |
2180 x 580 x 1100 mm |
| Package size CBU (L x W x H) |
2180 x 820 x 1220 mm |
2180 x 820 x 1220 mm |
2180 x 820 x 1220 mm |
| Loading SKD |
20 units/20GP, 40 units/40HC |
20 units/20GP, 40 units/40HC |
20 units/20GP, 40 units/40HC |
| Loading CBU |
28 units/40HC |
28 units/40HC |
28 units/40HC |
| Economy |
| Equivalent fuel economy (city) |
0.45 l/100 km |
0.48 l/100 km |
0.52 l/100 km |
| Equivalent fuel economy (highway) |
1.05 l/100 km |
1.13 l/100 km |
1.20 l/100 km |
| Typical cost to recharge |
$0.40 |
$0.68 |
$0.81 |
| Warranty |
| Standard motorcycle warranty |
2 years |
2 years |
2 years |
| Power pack warranty |
3 years/unlimited kms |
3 years/unlimited kms |
3 years/unlimited kms |
